The IGL (IGPM Graphics Library)

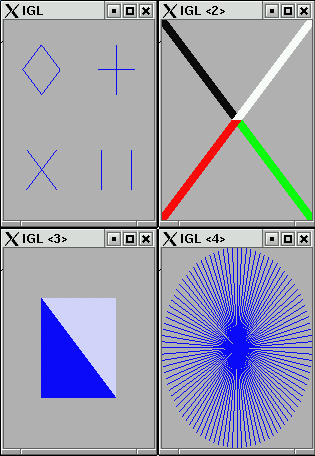

IGL screenshot

Purposes

The IGL is a small cross-platform C++-library for displaying everyday-tasks in mathematics and provides a multithreaded C++-Interface for GLUT. At the IGPM it is used for generating graphical output of numerical implementations (solving equations, integration, splines, etc.) in a beginners C++-Programming Tutorial. Providing an object-oriented abstraction layer for openGL (which has become the cross-platform standard for almost all operation systems) it offers the basic functionality of rendered vectorgraphics. On the other hand it has a small User-Interface that satisfies the needs for a novice C++-Programmer. IGL is designed for displaying static Graphics, if you are looking for an advanced environment that also allows real-time rendering, GLT might be a better choice.

Design Overview

Interface and Implementation

Roughly spoken, IGL serves as a object-orientated Wrapper for GLUT. The context-orientation (said to be the "poor man's object orientation") of the window management is wrapped by creating an object for each window-context comprising all the data and callback-functions needed.

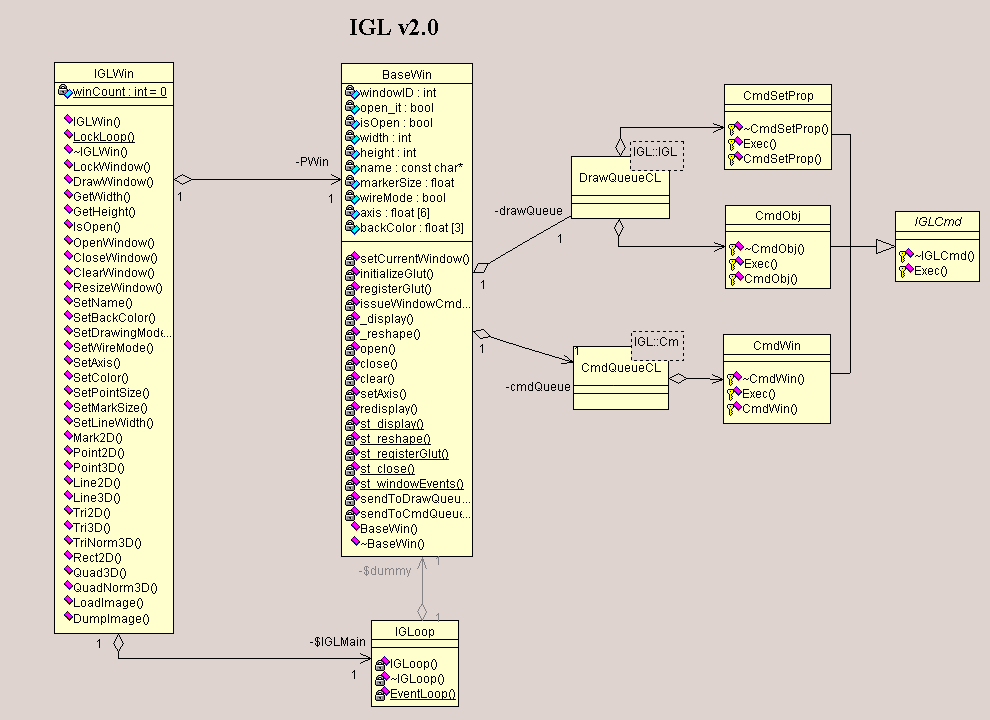

The Design of IGL differentiates between the Interface, the IGLWin-Object (declared in the 'public' header IGL.h, defined in IGLWin.cpp) and the Implementation, the BaseWin-Object (declared in BaseWin.h, defined in BaseWin.cpp). The two Objects communicate through a tiny Event-System as noted below.

Event-Handling

When IGLWin receives a method call (for example Line2D(0,0,1,1);) it generates an event (in this case a CmdObj) and appends it to the corresponding queue (in this case the drawQueue) of BaseWin. BaseWin has two queues, the cmdQueue and the drawQueue. The cmdQueue stores the Window-Operations (Open, Close, Clear, Resize, Redraw) represented by CmdWin and is emptied every WINDOW_REFRESH_TIME (defaults to 0.1s) by a timer-function. The drawQueue stores all the drawing Commands and keeps them until a Clr (via cmdQueue) is issued. Whenever the Window needs to be redrawn, the drawQueue is iterated (but not emptied) and each Command (CmdObj or CmdSetProp) is executed. Whether a window needs to be redrawn is determined by the GLUT Event-System, to which control has been handed over by glutMainLoop().

The IGLoop

The object-oriented wrapper of the glutMainLoop() call is the IGLoop (IGLoop.h, IGLoop.cpp). This is a private static variable of IGLWin which is initialized, when its first Instance is constructed. It then creates a separate thread and calls the never-returning glutMainLoop() which issues all the window-related callback-function calls of GLUT.
For bootstrapping, an invisible dummy window has to be created, which is a private member of IGLoop and plays no further role after initialization.

Threading issues

Because GLUT is not thread-safe, all operations of BaseWin which change the state variables of GLUT (e.g. glutSetWindow()) have to be executed synchronized with glutMainLoop(). This means, that they must be implemented in callbacks, either event-driven (e.g. glutDisplayFunc) or by timer (glutTimerFunc)

Feedback

If all this is of any use to you, I would be happy for a short comment.



Tim Paehler...
